Material: | Insulated Fiberglass | Color: | Yellow, Orange |
---|---|---|---|
Extended Length: | 3-15m | Closed Length: | 1.7-2.05m |
Application: | High Voltage | Shape: | Triangle Tube Triangular Tube |
Section: | 2-9section |

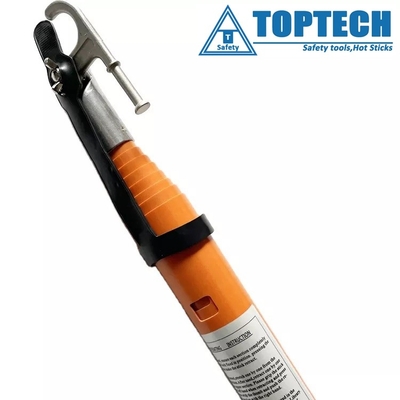

12ft Triangle Hot StickTelescopic High Voltage Operating Rod Stick, Triangle shape Hot Stick for Electric power -TOPTECH hotstick, link stick-measuring pole, measuring stick
TOPTECH Triangle Shape Telescopic Hot Stick Link Stick Advantage
● TOPTECH Triangle shape design keeps the sections aligned during extension and retraction.
● Push button release for stick extension and retraction.
● Telescopic design allows for easy assembly, storage and transportation.
● Universal end fitting accepts a wide variety of standard attachments.
● Easy-to-replace sections.
● Carrying bag included.
● Optional Height Measurement Marking
● Optional Polyurethane Foam Filled
● Rubber Foot (or Plastic)
● TOPTECH Triangle shape enables each section to lock in automatically no need to search for the button
TOPTECH Insulated Triangle Telescopic hot stick
1. Unique design: triangle pole, each section can be quickly extent-retracted and fixed. No need to rotate the section to fix.
2. High visibility: The outer surface of the top rod section is fluorescent, which is convenient for night operation and identification. The top rod is filled with fireproof and moisture-proof insulating foam to prevent the accumulation of water vapor.
3. Easy operation: with a locking button, easy to operate even if wearing insulated gloves.
4. Easy maintenance: Smooth surface section, easy daily cleaning.
5. Multifunctional: high strength aluminum alloy multi head, firmly connect with different tools.
6. Multiple size: Extended length from 3.8m-12m, retracted length from 1.5-1.81m. Can be custom made according to customers’ requirements.
Model | Extended Length | Closed Length | Sections | Net Weight |
T301-3M/2-N | 3M | 1.7M | 2 | 1.38KG |
T301-3.8M/3-N | 3.8M | 1.48M | 3 | 1.66KG |
T301-5M/4-N | 5M | 1.53M | 4 | 2.26KG |
T301-6.4M/5-N | 6.4M | 1.58M | 5 | 2.92KG |
T301-7.8M/6-N | 7.8M | 1.63M | 6 | 3.68KG |
T301-9.2M/7-N | 9.2M | 1.68M | 7 | 4.55KG |
T301-10.6M/8-N | 10.6M | 1.75M | 8 | 5.60KG |
T301-12M/9-N | 12M | 1.75M | 9 | 6.50KG |
T301-12.5M/9-N | 12.5M | 1.78M | 9 | 6.80KG |
T301-15M/9-N | 15M | 2.05M | 9 | 8.20KG |
